ACL Bracing - Clinical Studies



ACL injuries per year occur in the U.S.3




ACL injuries per year occur in the U.S.3

Women Are



ACL Injury

Facts & Figures

Risk of ACL injury to contralateral knee is 2-3 times that of the reconstructed knee

Contributing Factors

  • Decreased knee flexion angle1
  • Anterior tibial shear forces2
  • Combined valgus and knee internal rotation moments2
  • Combined valgus and knee external rotatinon2


  • The re-injury rate for the ACL reconstructed knee is 1.8%-10.4%6
  • Risk of ACL injury to the contralateral knee is double that of the reconstructed knee6
  • Only 1/3 of reconstructed athletes attempt to play competitive sports at their pre-injury level within one year following reconstruction7
  • Fear of re-injury prevented competitive college and high school football players from returning to play8
  • Re-injury rate is 6x greater compared to previously uninjured patients9
  • Re-injury rate is 5x higher in females compared to healthy females9
  • Females are 2x more likely to have an injury to the contralateral knee compared to the previously affected knee9
  • For every month that return to sports was delayed until 9 months post ACL-reconstruction, the rate of knee re-injury was reduced by 51%10

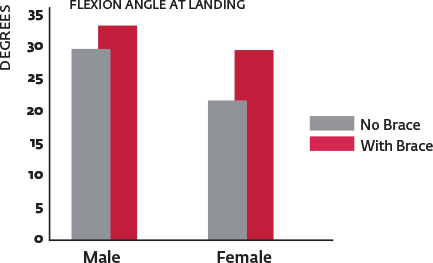

  • Significantly increases knee flexion angle at peak posterior ground reaction force (PPGRF) by 9° vs. a standard braced knee and a non-braced knee18,20
  • Significantly decreases PPGRF during stop jump task landing and side-cutting activities18
  • No significant performance limitations were associated with the knee brace with FourcePoint hinge technology18

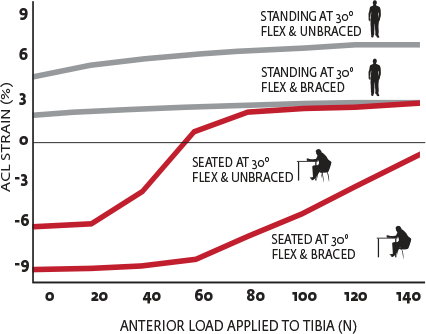

ACL strain values produced by anterior tibial loading.
Braces utilizing 4-Points-of-Leverage technology effectively reduce ACL strain which could be particularly important during rehabilitation while the graft is remodeling.12,13,14

Wearing a 4-Points-of-Leverage™ brace:

  • Decreases ACL strain by 50% for anteriorly directed loads during weight bearing and non-weight bearing activities12, 13
  • Significantly reduces tibial rotation vs. unbraced and sleeved groups16
  • May improve both proprioception and postural control17
  • Increases patient confidence after ACL reconstruction18




FourcePoint hinge increases flexion angles, reducing anterior shear forces and strain on the ACL and thus significantly decreasing the chance of injury.

FourcePoint hinge improves joint mechanics of both knees post ACL surgery.

The anterior shear force applied on the tibia was reduced by 9% for females & 13% for males.21

The decrease in anterior shear force on the tibia should substantially reduce the load on the ACL.19, 21

ACL Injury


Prophylactic bracing can significantly reduce the number of knee ligament injuries.


Reducing the risk of high impact knee ligament injuries

Prophylactic brace use


  • May be effective in reducing the risk of incurring an MCL sprain in football, and generally provide 20-30% greater MCL resistance to a lateral blow25
  • Reduces injury rates among college football players, linemen, linebackers and tight ends when worn in both practices and games vs. unbraced players24, 27
  • An internal analysis at a major Division I university football program, the number of days lost due to knee injury (and related associated healthcare costs) was reduced by 99% from year 1 to year 2 through the use of a custom fitted prophylactic knee brace in the 2nd year29

Off-road Motorcycling

  • Reduces ACL injury rates by 50% with a 7-fold decrease in MCL injury rates26


  • Reduces ACL reinjury by 3-times compared to non-braced28


Reducing the risk of injury to the contralateral knee

Wearing NO brace or a knee brace without FourcePoint™ hinge technology (results at 6-12 months post-op)

  • 30% deficit in joint mechanics30
  • Asymmetry of mechanics in both knees30


prescribe confidence

A brace equipped with 4-Points-of-Leverage plus FourcePoint is a clinically-proven combination to protect and prevent injury to the ACL.

Clinical Biomechanics Review

  • Training with FourcePoint™ hinge will encourage the knee to stay out of the “at risk” position (0⁰-30⁰ of flexion)
  • Training effect with FourcePoint hinge will be retained despite intermittent brace wear
  • Rehab training after ACL reconstruction without a FourcePoint hinged brace leads to abnormal joint mechanics of both knees
  • Rehab training after ACL reconstruction with a FourcePoint hinged brace improves joint mechanics in both knees
