Arsenal Ankle Plating System™

Comprehensive Plating System for Ankle Fracture

The Arsenal Ankle Plating System™ is designed to meet the needs of ankle fracture procedures and encompasses a wide range of fracture patterns. This comprehensive collection includes 37 plates across 9 families, ensuring comprehensive solutions for tri-malleolar and intra-articular fractures.

  • Overview
  • Videos
  • Documents

SYSTEM HIGHLIGHTS

  • Sturdy where it counts and sleek where needed, 37 plates within 9 families address any ankle fracture personality, including intra-articular patterns
  • Patented locking construct up to 30° in any direction (60° cone of angulation)
  • Exclusive solutions to address malleoli fractures

DESIGN FEATURES

  • Dual-lead screw options, including hexalobe 2.7 and 3.5mm locking and non-locking cortical screws, 4.0mm locking and non-locking cancellous screws, and partially threaded cannulated hexalobe screws
  • Multi-lock functionality accepting repeatable lock and relock of screws, designed to reduce implant waste and save OR time
  • Type II Anodization, Titanium Alloy
  • Scalloped plate design intended for ease of plate contouring to the patient’s anatomy and minimal plate footprint

37 plates within 9 plate families addressing both Tri-malleolar
and intra-articular fracture patterns

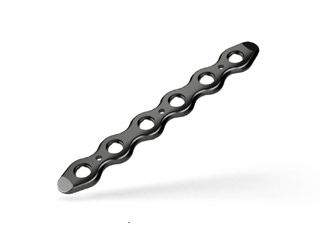

Utility

Utility (9 plates: straight, tubular & buttress)

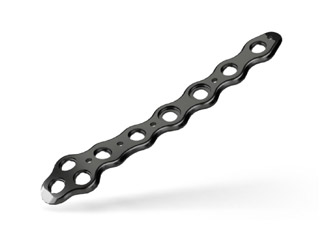

LATERAL FIBULA

LATERAL FIBULA (9 PLATES: SYMMETRIC & NONSYMMETRIC)

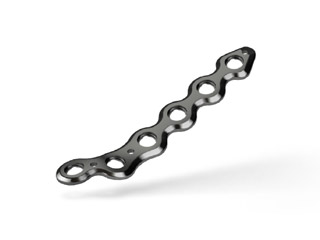

POSTEROLATERAL FIBULA

POSTEROLATERAL FIBULA (4 PLATES)

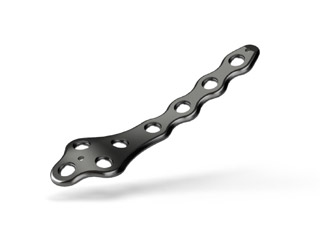

MEDIAL MALLEOLUS

MEDIAL MALLEOLUS (2 PLATES)

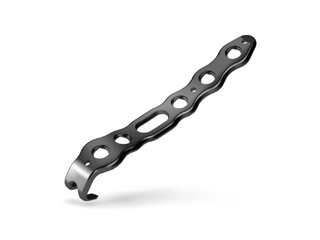

HOOK

HOOK (2 PLATES)

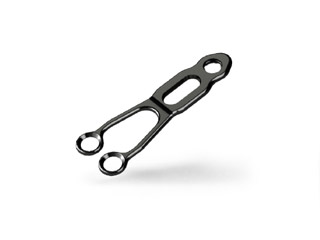

TENSION BAND

TENSION BAND

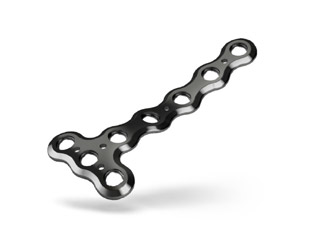

POSTERIOR TIBIA

POSTERIOR TIBIA (2 PLATES)

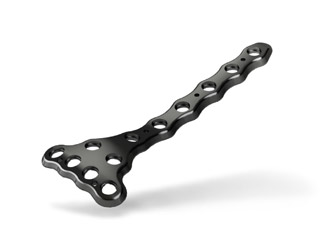

ANTERIOR TIBIA

ANTERIOR TIBIA (2 PLATES)

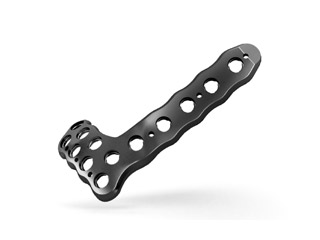

ANTEROLATERAL TIBIA

ANTEROLATERAL TIBIA (6 PLATES)


Malleolus Implant

The malleolus implant is a meticulously crafted cannulated implant with a transitional thread pitch from 3.5mm cortical to 4.5mm cancellous. Adept at accommodating diverse bone densities in the tibia during medial malleolus procedures, the cancellous threads aim to capture the epiphyseal scar, while cortical threads ensure secure fixation of the distal cortices.

MALLEOLUS IMPLANT

MALLEOLUS Screw 65-100mm
The malleolus implant is a meticulously crafted cannulated implant with a transitional thread pitch from 3.5mm cortical to 4.5mm cancellous. Adept at accommodating diverse bone densities in the tibia during ankle fracture procedures, the cancellous threads aims to capture the epiphyseal scar.

Screw Options:

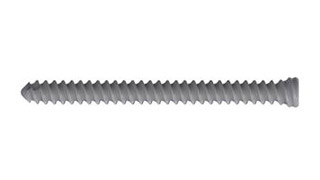

LOCKING CORTICAL

LOCKING CORTICAL
(2.7 & 3.5 MM)

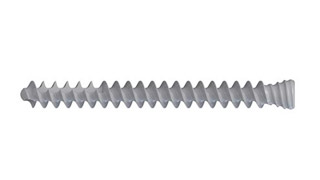

4.0 MM LOCKING CANCELLOUS

4.0 MM LOCKING CANCELLOUS

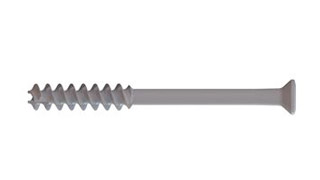

4.0 MM CANNULATED

4.0 MM CANNULATED

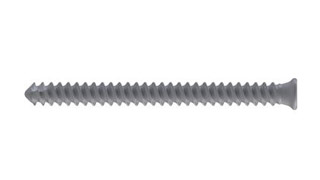

NON-LOCKING CORTICAL

NON-LOCKING CORTICAL
(2.7 & 3.5 MM)

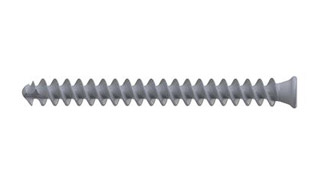

NON-LOCKING CANCELLOUS

4.0 MM NON-LOCKING CANCELLOUS
