DynaNail Hybrid™ Fusion System
DynaNail Hybrid™ Fusion System
A member of the DynaNail Mini® family, The DynaNail Hybrid™ Fusion System features a unique dual design that combines the compressive power and stability of a nail with the easy insertion and anatomical friendliness of a screw. Designed for use in subtalar fusion procedures, the DynaNail Hybrid™ contains an Superelastic Internal NiTiNOL Element that maintains active, dynamic compression in response to bone settling or resorption. The DynaNail Hybrid™ shares universal instrumentation with the DynaNail Mini® to provide surgeons with intraoperative ease and flexibility.
Read more about the nickel titanium components of DynaNail Hybrid™ Fusion System here.- Overview
- Videos
- Related Products
- Documents
- References
Features and Benefits
- Internal NiTiNOL element offers between 2 - 5 mm of active compression, PLUS manual intraoperative compression.1
- Proximal talar threads allow for easy insertion, similar to a screw.
- Distal transverse screw provides additional stability and prevents device migration.
- Offered in 60 – 100 mm lengths (in increments of 10 mm) to complement diverse patient anatomies.
The Proof is in the Science

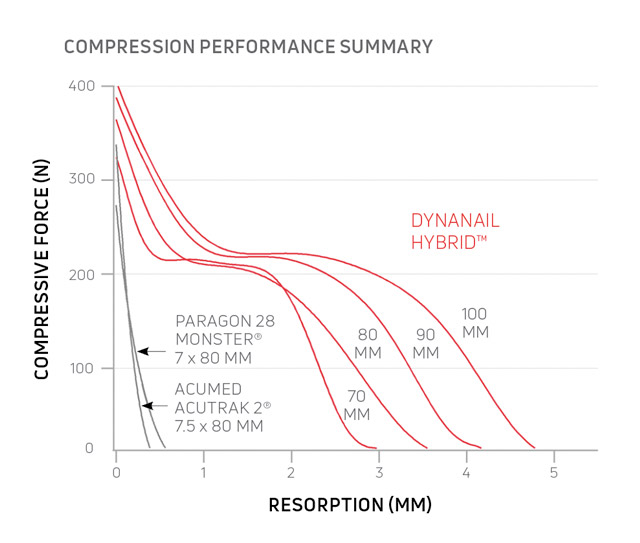

Unlike traditional screws that lose compression post-operatively, the DynaNail Hybrid™ maintains compression up to 5 mm of bone settling or resorption depending on implant length.1
DynaNail Hybrid Fusion Animation
Instructions for use:
- Dupont KM, Shibuya N, Bariteau JT. Tibiotalocalcaneal Arthrodesis with Intramedullary Nails – Mechanobiological Background and Evolution of Compressive Technology. Global J Orthopedic Research, 2019. 1(5).
